• Model Number: CQB65-50-160F
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

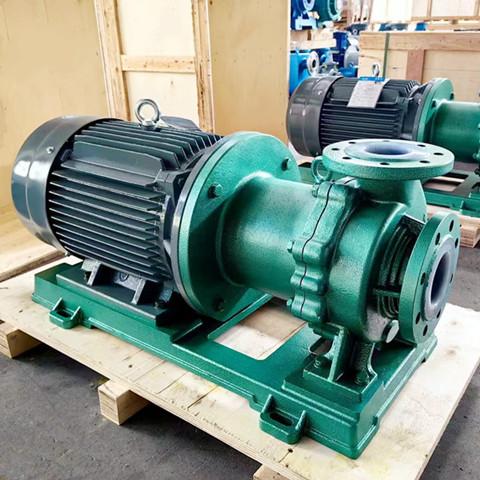

CQB65-50-160F Fluoroplastic alloy magnetic driving pump corrosion resistance no leakage heavy duty Description

Advantages of Fluoroplastic Magnetic Pump

The fluoroplastic alloy pump is made by fusing polytetrafluoroethylene (F46) and polytetrafluoroethylene (F4) in a certain proportion - fluoroplastic alloy (F50), abbreviated as fluoroplastic alloy pump. Compared with F46, products made of fluorine alloy have higher material strength and higher temperature resistance. The working parts and impellers of fluorine plastic alloy pumps are made of fluorine alloy. The overcurrent section is made of fluorine materials such as lined polytetrafluoroethylene and perfluoroethylene, which are processed through reasonable formula molding. It has strong corrosion resistance, high mechanical strength, no aging, and no toxins.

Fluoroplastic alloy magnetic pump is a chemical process pump that utilizes modern magnetic mechanics principles and permanent magnets to achieve non-contact indirect movement. The fluoroplastic alloy magnetic pump consists of a pump, a magnetic coupling, and a motor. The key components of a magnetic coupling consist of an outer magnetic rotor, an inner magnetic rotor, and a non-magnetic isolation sleeve. When the motor drives the outer magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic substances, driving the inner magnetic rotor connected to the impeller to rotate synchronously, achieving non-contact transmission of power and transforming dynamic sealing into static sealing. The driving device is directly installed on the motor shaft, the pump chamber is completely closed, and the impeller on the rotor assembly rotates indirectly through magnetic coupling.

Fluoroalloy pumps are processed and produced using special pump technology. Suitable for long-term transportation of any concentration of liquid acids, oxidants, and corrosive liquids at -20 to 150 degrees Celsius. Widely used in industries such as chemical, petroleum, pharmaceutical, pesticide, dye, paint, smelting, papermaking, electroplating, electricity, food, etc.

The manufacturing, production, and acceptance specifications of the fluorine alloy pump series products strictly comply with relevant standards and specifications, with reliable performance, simple maintenance, and energy saving. It is a better corrosion-resistant transmission machinery.

Fluorine alloy magnetic pump is a new type of chemical pump that is fully sealed, leak free, and pollution-free, with the characteristics of safety, high efficiency, and energy saving. Used for transmitting corrosive, toxic, flammable, explosive, expensive, or easily vaporized media. Due to its completely leak free advantage, it has successfully eliminated the faults of running, emitting, dripping, and leaking in fluid transmission, and has become an irreplaceable product in environmental engineering. It is applied in industries such as chemical, acid, alkali, smelting, rare earth, pesticide, dye, pharmaceutical, papermaking, electroplating, electrolysis, acid washing, radio, foil, scientific research institutions, and national defense chemical.?
